Phidix Pull-Only Tension Control Cable
When your application requires precise linear control without pushback, the Phidix Pull-Only Tension Cable offers a compact, sealed solution trusted in gear release, shutoff, lockout, and throttle applications.
Built for performance in rugged mechanical environments, this cable assembly is optimized for tension-based actuation and routing flexibility—ensuring smooth pull response, sealed durability, and long-term performance.

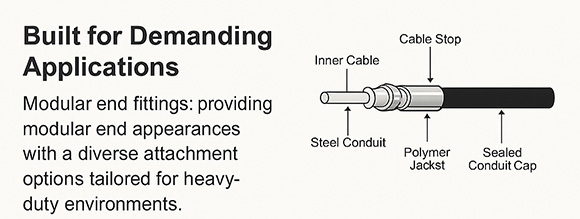

Engineered for Mechanical Reliability
• Pull-Only Design: Transfers motion through steel inner core with no compression instability.
• Lubed-for-Life Conduit: Sealed, maintenance-free design with long operating life.
• Protective End Caps: Optional brass conduit caps and stainless steel rod ends improve corrosion resistance.
• Flexible Routing: Handles curved paths with minimal friction or signal loss.
Whether you need to trigger an engine shutoff, disengage a clutch, or release a latch—this cable is built to do one job, and do it with consistency.
Typical Applications
• Manual gear disengagement systems
• Throttle actuation for compact machinery
• Emergency engine shutoff or fuel cut systems
• Lock-pull or release mechanisms on equipment doors, hatches, and booms
• Mechanical safety lockout in oilfield, marine, or agricultural systems
Technical Specifications
| Feature | Detail |
| Actuation Type | Pull-only (tension) |
| Conduit | Steel wrap + low-friction liner, sealed |
| Core | Galvanized steel; optional stainless |
| Jacket Options | Black PVC or optional thermoplastic |
| Lubrication | Factory sealed; no re-lubrication required |
| Conduit End Caps | Brass (default); stainless optional |
| End Fitting Options | Threaded rod, clevis, ball stud, panel mount |
| Recommended Travel (A) | 1.00" to 5.00" typical |
| Housing Length (L) | As specified; up to 120"+ |
| Certification | Manufactured under IATF 16949 quality system |

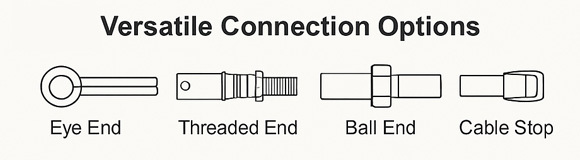

End Fitting Options
Need a specific combination? Our engineers can configure end connections based on your interface requirements.
Why Choose Phidix Pull-Only Tension Cables?
• Built for sealed reliability: No dust or grit intrusion thanks to lubed-for-life conduit.
• Modular design: Compatible with a wide range of control heads and interfaces.
• Trusted across industries: Used in transportation, agriculture, industrial machinery, and energy systems.
• Backed by quality systems: Built to IATF 16949 standard for global OEM compliance.
