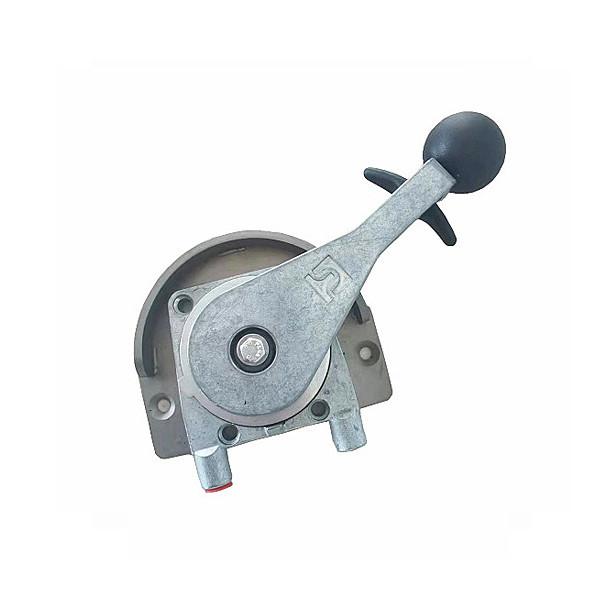

Mechanical Gear Shift Control Lever

Name: Mechanical Gear Shift Control Lever
Brand: PHIDIX
Price: 1 USD

Mechanical Gear Shift Control Lever Manufactures

Brand Name : PHIDIX

Model Number : Customized

Certification : IATF16949

Place of Origin : China

MOQ : 1 Piece/Pieces

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 888 Piece/Pieces per Month

Delivery Time : 7-40 work days

Packaging Details : carton or wood case

Name : Unidrum Lever Industrial Push - Pull and Pull - Only Hand Control Hand Control Lever

Applications : Medium to light duty throttle compactors

Material : Zinc Based Die-Cast Body, Drum and Lever / Internal Long Life Nylon Bearings

Features : Adjustable friction lock / 5 to 1 mechanical advantage / Adjustable mechanical stops

Type : Push-Pull and Pull-Only Hand Control

Package : wood case /carton/ bubble film

Contact Now

Universal mechanical gear shift control lever hand control lever

【 Product Description 】

A control head designed primarily for hand throttle applications on commercial and industrial vehicles, and also suitable for many other uses. Compact and efficient for imparting light-to-medium pull-only or push-pull loads through flexible conduits and innermembers. Unidrum controls hold and operate up to 26lb push-pull or pull-only output loads. Mechanical advantage at knob is 5 to 1. There is a self locking nut for operator adjustment of friction setting. The adjustable stop plates allow 10° (3/16" linear output) incremental travel adjustment. Two inches of cable travel requires approximately 90° lever travel. Three inches of cable requires approximately 135° lever travel. The lever position is adjustable in 60° increments to provide optimum operating range. Optional cable entry offers four mountings/directions of operation alternatives. Also available with a smaller handle for light duty applications or with a locking handle.

【 Applications 】

• Medium to light duty throttle compactors

• Valve dump control jackhammers

• Hydraulic valve control concrete cutters

• Backhoe throttle

【 Material 】

• Zinc Based Die-Cast Body, Drum and Lever

• Internal Long Life Nylon Bearings

• Optional Black Powder Coat Paint Finish

【 Features 】

• Adjustable friction lock

• 5 to 1 mechanical advantage

• Adjustable mechanical stops

【 Function 】

• Power take-off

• Directional control

• Self-locking

• Control a push pull cable

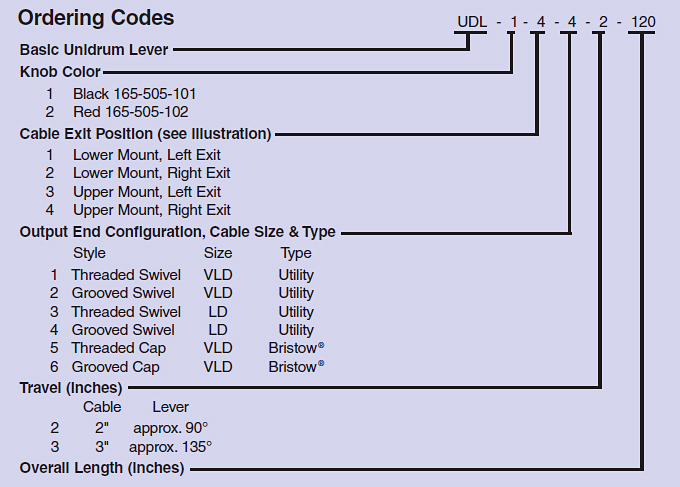

【 Unidrum Lever Order Code 】

Mechanical Gear Shift Control Lever

【 Unidrum Lever 】

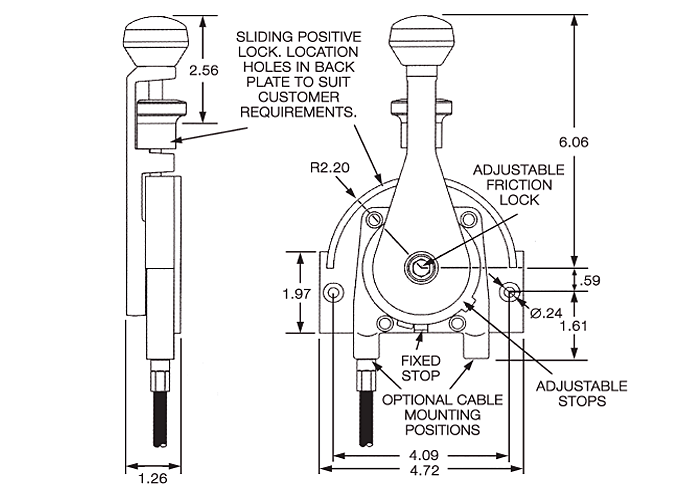

CH290 (Unidrum Operator Positive Lock)

Mechanical Gear Shift Control Lever

• Hold and operate up to 26lb push-pull or pull-only output load. Mechanical advantage at

knob is 5/1.

• Self-locking nut for operator adjustment of friction setting.

• Adjustable stop plates allow 10° (.2 linear output) incremental travel adjustment. 2of cable

travel requires approximately 90° lever travel.

• Optional cable entry.

• Rugged diecast zinc alloy material
