Insert-Type Pneumatic All-metal Connectors Cylindrical Exagonal Socket External Thread Fittings

Name: InsertType Pneumatic Allmetal Connectors Cylindrical Exagonal Socket External Thread Fittings
Brand: carterberg
Price: 1 USD

Brand Name : carterberg

Model Number : CB-YPF-A

Certification : 16949

Place of Origin : China

MOQ : 10

Price : Negotiatable

Payment Terms : Negotiatable

Supply Ability : 10000

Delivery Time : 20 days

Packaging Details : wooden cases

Connection Type : Quick Connect

Features : Non-valve

Contact Plating : Gold or tin

Technology : CNC Machining

Medium : Gas/Liquid

Length : 6m or as requird

Weight : 2.5 lbs

Connection : Female

Working Medium : Air ,Vacuum

Maximum Pressure : 150 PSI

Standard : ISO16028

Thread Size : 9/16*20 -- 2*12

Working Pressure : 8700 PSI

Used : Railway Maintenance

Color : Silver

Contact Now

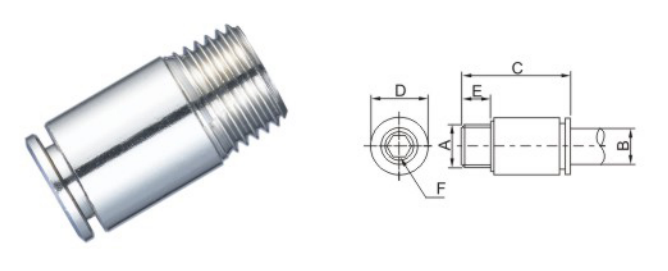

Insert-Type Pneumatic All-metal Connectors Cylindrical exagonal socket external thread fittings

Insert-type pneumatic all-metal connectors are robust components used in pneumatic systems. These connectors are designed to provide a reliable and durable connection in various industrial applications. The "insert-type" typically refers to the design where one end of the connector is inserted into the corresponding port or fitting for a secure connection.

All-metal connectors are constructed from materials like stainless steel, copper, or nickel, offering excellent resistance to corrosion and high pressures. They are ideal for environments where durability and reliability are crucial.

lnserted pipe fittings

Texture	Pure copper nickel plating	Productfeatures	Full brass manufacturing, nickel plated, using the novel structure of oll seal, Small and exquisitldvolume,beautifulnadelling and conveniednt disassembling nake the pneumatic system greatlysimplifiled. if users need other materials, we can negotiate the customization.
Standard working pressure	0-1.6Mpa
Oll seal	NBR FR	Scope of application	Insert pipe fittings can be used with PA, PU, PE hose in compressed air circuit, connectingcylinders,valves and pneumatic logic elements, etc.
Operating temperature	-20°- 80° -20°- 200°

Insert-Type Pneumatic All-metal Connectors Cylindrical Exagonal Socket External Thread Fittings

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
