Automatic push-to-connect pin-type one-way shut off operation pneumatic couplings

Name: Automatic pushtoconnect pintype oneway shut off operation pneumatic couplings
Brand: carterberg
Price: 1 USD

Automatic push-to-connect pin-type one-way shut off operation pneumatic couplings Manufactures

Brand Name : carterberg

Model Number : CB-12

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Material : 316 Stainless Steel

Size : 1/4"-1''

Application : Construction

Pressure : 250bar

Packing : Carton

Technics : Casting

Standard : ISO

Name : Quick connect Couplings

Contact Now

Automatic push-to-connect pin-type one-way shut off operation pneumatic couplings

CB-12-M series pneumatic couplings have a pin-type one-way shut off operation.

Applications & Markets • Construction • Maintenance and Repair • In-plant/Industrial • Pneumatic Tools

Features

Automatic push-to-connect
Pin-lock design
Alloy steel locking pins
Standard body material: Zinc trivalent plated carbon steel
Standard seal material: Buna-N

Automatic push-to-connect pin-type one-way shut off operation pneumatic couplings

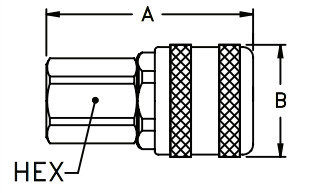

Body Size	PARTNO.	Thread	A	B	HEX
1/4"	CB-S2S-12MN-L	1/4-18	1.95	1.02	0.69
1/4"	CB-S2S-12MN-L	3/8-18	1.91	1.02	0.69
1/4"	CB-S2S-12FN-L	1/4-18	1.87	1.02	0.69
1/4"	CB-S2S-12FG-L	1/4-19	1.64	1.02	0.75

Automatic push-to-connect pin-type one-way shut off operation pneumatic couplings

Body Size	PARTNO.	Thread	C	D	HEX
1/4"	CB-P2S-12MN-M	1/8-27	1.42	0.58	0.50
1/4"	CB-P2S-12MN-M	1/4-18	1.68	0.65	0.56
1/4"	CB-P2S-12MG-M	1/4-19	1.68	0.65	0.56
1/4"	CB-P2S-12MN-M	3/8-18	1.68	0.79	0.69
1/4"	CB-P2S-12FN-M	1/4-18	1.55	0.79	0.69
1/4"	CB-P2S-12FG-M	1/4-19	1.52	0.79	0.69
1/4"	CB-P2S-12FN-M	3/8-18	1.61	0.94	0.81

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
