Flexible Shaft For Valve Remote Transmission Mechanism

Name: Flexible Shaft For Valve Remote Transmission Mechanism
Brand: PHIDIX
Price: 1 USD

Flexible Shaft For Valve Remote Transmission Mechanism Manufactures

Brand Name : PHIDIX

Model Number : Customized

Certification : IATF16949

Place of Origin : China

MOQ : 100 Piece/Pieces

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 888 Piece/Pieces per Month

Delivery Time : 7-40 work days

Packaging Details : carton or wood case

Name : Flexible Shaft For Valve Remote Transmission Mechanism

Maximum Line Speed : 15000 Revolutions Per Minute (Bearing)

Length : Customized

Maximum Speed : 2000 RPM (Bushing Sleeve)

Maximum Torque : 25NM

Minimum Bending Radius : 15CM

Material : Carbon Steel Galvanized Nickel And Alloy Steel

Salt Spray Test : More Than 500 Hours

Internal Steel Wire : High Temperature Resistance Of 180℃

Flexible Shaft Amplitude : No More Than 1.6MM

Sheath : Polyester Rubber Protective Sleeve

Contact Now

Flexible Shaft For Valve Remote Transmission Mechanism

【 Product Description 】

The flexible shaft for valve remote transmission mechanism is suitable for areas with limited space, and the transmission path between the operating station and the valve station has a large span and no attachment point, or needs to bypass obstacles and there are sharp bends.

【 Features 】

• It is flexible to use, convenient and flexible, and supports working in small and hard to reach places.

• Easy and simple installation.

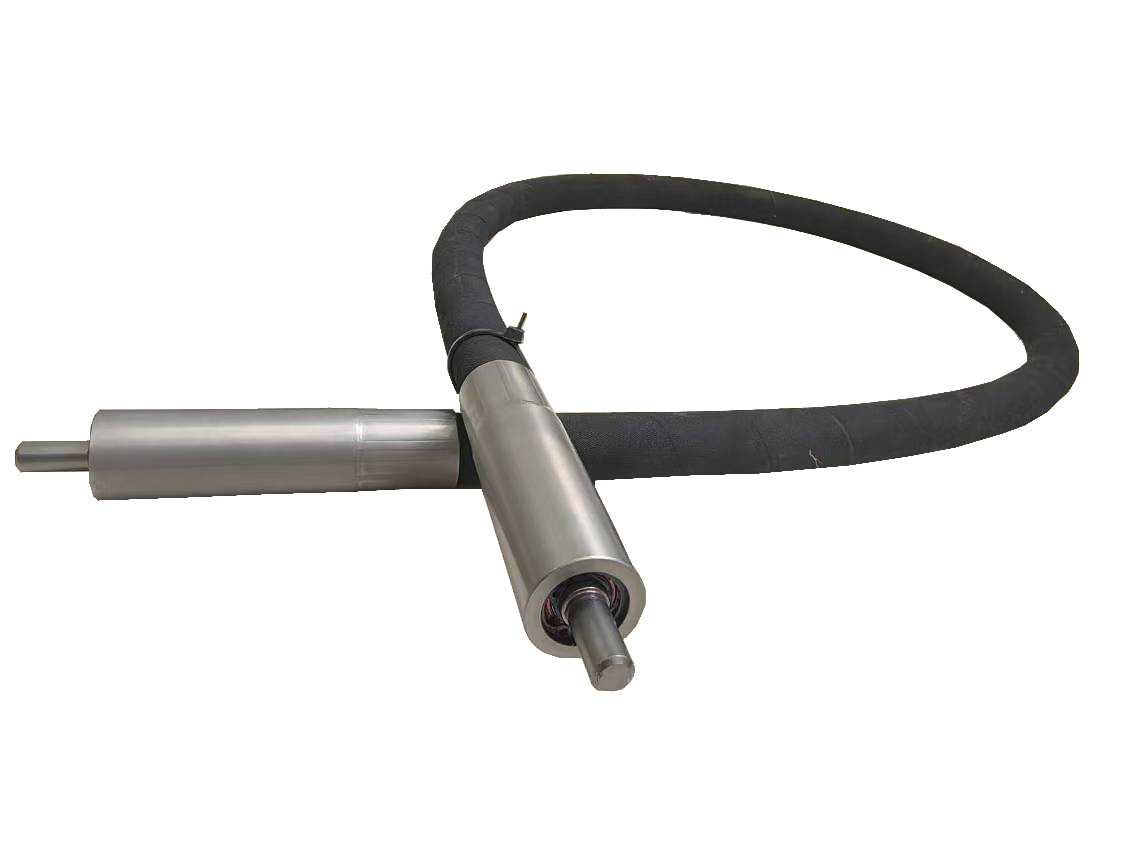

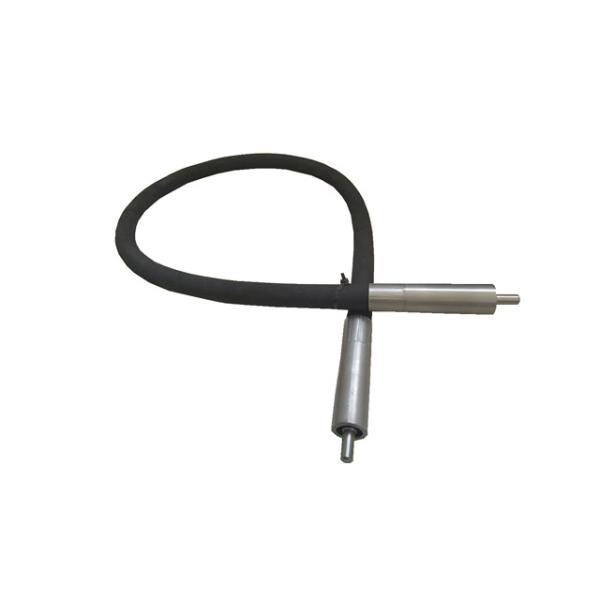

【 Real Pictures 】

Flexible Shaft For Valve Remote Transmission Mechanism
