Manual Shifter Mechanism – Technical Specifications
The Phidix PHD-928-318 manual shifter mechanism is built for smooth gear selection and long-lasting mechanical performance in both commercial and passenger vehicles. Here’s a full breakdown of its core specifications, mounting details, and system fitment points.
Core Specifications
| parameter | Value |
| Model Number | PHD-928-318 |
| Brand | Phidix |
| Material | Steel body with corrosion-resistant coating |
| Installation Stroke | 180mm / 205mm |
| Effective Stroke | 75mm |

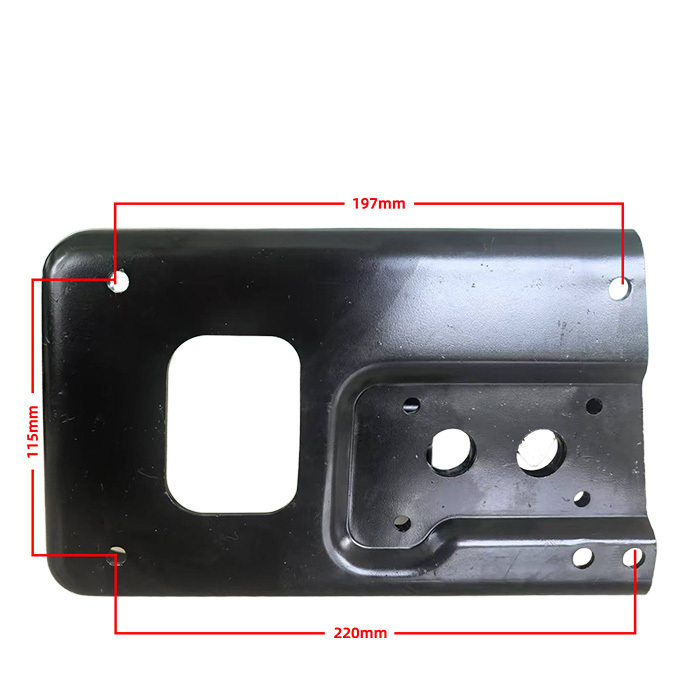

| Installation Size | 197mm / 220mm |
| Mounting Holes | 4-hole configuration |
| Control Type | Manual mechanical gear shifting |
| Mounting Method | Base-mount with standard flange interface |
Dimensional Details
Phidix offers two installation stroke options for compatibility with different shift ranges:
• 180mm – Ideal for shorter-throw or compact gear shift setups
• 205mm – Supports extended lever movement in heavy-duty or commercial applications
Mounting is achieved via a 4-hole base, which adapts easily to flat or inclined transmission housings.
Durability & Materials
• Constructed from reinforced steel for strength under repeated use
• Finished in corrosion-resistant black coating
• Internal guides tested to over 100,000 shift cycles without failure
This ensures smooth control even in high-vibration environments such as trucks and off-road vehicles.
Request Fitment Support
Need to validate stroke length or mounting hole alignment for your gearbox housing?
We’re happy to review your technical drawings or help recommend a full shifter system.
|
|
